Tactical Panel and Solar Products

Tactical Area Lighting™

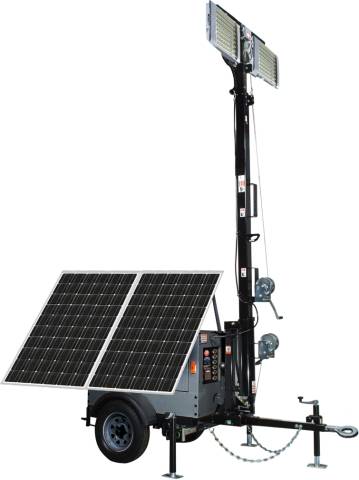

Towable Solar Lighting Trailer System

Features/Benefits

Extreme Environments: ETI Solar Lighting Trailers are designed for extreme temperature environments from unprotected desert installations to frozen tundra operating temperatures -40°C to 55°C.

Reduced Energy Consumption:Environmental benefits of solar power help meet federal mandates for energy reduction. High efficiency LED lights also require less power than fluorescent lights for reduced power consumption.

Reduced Greenhouse Gas Emissions & Pollution: ECO friendly Solar Power Light Trailer System replaces JP-8 generator powered lights. No emissions or pollutants released into the environment.

Reduction of Fossil Fuel Usage: Fuel cost for lighting eliminated for significant annual cost savings and reduces dependency on foreign procured oil.

Lower Maintenance Cost: Eliminate engine/generator regular maintenance. Also allows automatic unattended operation.

Silent / Stealth Operation: ECO Friendly Solar Power Panels replace noisy generator system. Improves on site communication capability and aids covert operations.

Moveable Trailers: ETI Solar Lighting Trailers are equipped with DOT standard towable trailers for quick setup, flexibility, and transportability. Compact design for rapid deployment and instant operation. Single person setup.

Adjustable Illumination Heights: Adjustable 30 foot Mast allows light adjustment from 8 feet to 36 feet. 360-degree mast rotation and Pan/Tilt light fixture feature lets you put the light where it’s needed.

24/7 Operation: Designed with battery banks for nighttime and multiple cloudy day operation for extended operation.

Modularly Expandable: Additional light and battery banks available for applications requiring more light or higher power requirements.

Long Life LED Lights: LED lights offer longer operational lifetime than fluorescent lights. LED lights also operate in colder temperatures than fluorescent lights, down to –40°C.

Optional Auxiliary Light:Additional lights can be added for specific applications or for mobile lighting applications.

Optional Motion Sensor Activated Lights:Reduces energy usage and saves power for when light is truly needed. Eliminates “constant on” light situation.

Overall System Specifications

ETI0021-8001A1

Type:

Towable Trailer

Mast:

30 ft. Adjustable

Primary Lights:

High Efficiency LED,

15,600 Lumens Total Output,

Optional up to 156,000 Lumens

Power:

Solar Powered,

Optional Wind Turbine

Hours of

Battery Backup Operation:

36 Hours,

Modularly Expandable for Longer Backup Times

Auxiliary Lights:

Optional up to four (4) lights,

7,800 Lumens each.

Other Light Options:

5,850 to 39,000 Lumens each

Motion Sensor Light Activation:

Optional

Optional cable retractor for remote mount motion sensor capability

Parking Brake:

Mechanical, Handle Operated

Trailer Specifications

Material Type:

Tubular Steel

Wall Thickness:

0.1875 in. (4.76 mm)

Trailer Hookup:

Pintle Hook/Lunette Ring

Optional Hookups

2 in. Ball Hitch,

Combination Hitch.

Axel Span:

40.75 in.

Trailer Width:

49 in. (1.24 m)

Retracted Unit Length:

161 in. (4.08m)

Trailer Length:

144 in. (3.66 m)

DOT Running
Light Package:

Tail, Side, Brake
& Directional Lights

Tire Size:

13 in. (0.33 m)

Features:

Equipped with Outriggers

to Withstand 65 MPH Wind

Mast Specifications

Material Type:

Tubular Steel

Material Finish:

Powder Coat Paint

Max Extension:

30 ft. (9.1 m)

# Sections:

Three (3)

Winch Type:

Self Braking Dual Hand Crank,

Optional Motorized Winch

Rotation:

360 Degrees with Locking System

Light Specifications

ETI0021-8001A1

Type:

LED High Performance,

High Brightness

Floodlights per Trailer:

Two (2) Standard,

Optional up to four (4)

Adjustable Lamp Heads:

Yes, Pan & Tilt,

Optional Remote Adjustment

Mean Time Between Failures (MTBF):

> 50,000 Hours,

(11.4 Years @ 12 Hrs/day)

Lamp Body Material:

PC and Aluminum Alloy

Lumens:

Primary Lights 7800 per Light Standard,

15,600 System Standard,

Optional up to 156,000

Other Light Options:

5,850 to 39,000 Lumens each

Beam Angle:

60°-180°

Other Options:

Optional Fluorescent Lamps

Solar Panel Specifications

ETI0021-8001A1

Type:

60 Cell Monocrystal

# Panels per Trailer:

Two (2) Standard

Weight Ind. Panel:

40 lbs (18 kg)

Frame Material:

Aluminum Alloy

Dimensions Ind. Panel:

64.57 x 39 x 1.65 in

Rated Power:

460 Watts (230 Watts per Panel)

Features:

Impact, Shatter, and Sand Resistant, withstand 1” Hail @ 52 MPH

Cell Efficiency:

17%

Battery Specifications

ETI0021-8001A1

Type:

Seal Lead Acid (VSLAB),

Maintenance free immobilized electrolyte,

Flame retardant materials

(Oxygen Index 28+)

Run Time:

Min 36 Hours,

Optional Modularly Expandable

Low Voltage Battery

Disconnect (LVD):

Standard

AH Rating:

360 AH,

Optional up to 720AH

ENVIRONMENTAL

Storage temperature:

-40 / +70 °C

(-40 / +158 °F)

Operating temperature:

-40 / +55 °C, Optional 65°C

(-40 / +131 °F)

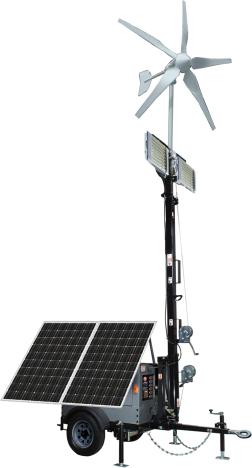

Wind Turbine Option Specifications

Rated Power:

1200 Watts,

Variable power based on wind speed, 1000 Watts at 28 MPH

Min. Power Generation Wind Speed:

6.7 MPH

Max. Wind Speed:

67 MPH,

Features Over-Speed Control – Electromagnetic speed limitation

(reverse reluctance torque control) and blade over-speed braking

Wheel Diameter:

5.9 Ft. (1.8 M)

Number of Blades:

Five (5)

Blade Material:

Nylon reinforced fiberglass with advanced airfoil design

Housing Material:

Aluminum alloy,

Severe climate sand & salt corrosive resistance

Noise level:

<55 dBA
